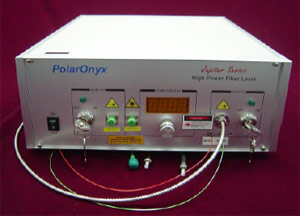

Jupiter series represent PolarOnyx's high energy and high power nanosecond fiber laser products at 1550 nm and 1064 nm wavelength range. Various power levels are available from 1 W to 20 W and the pulse width from range of 1 ns to 200 ns. Build-in electronics provides interface (RS232 and customer defined) with computer for ease of automation and system integration. OEM versions provide superior interfaces for system integration and instrument versions offer a turn-key solution for R&D. Customized designs are also available. The optical signal pulse shape can be arbitrarily manipulated.
| Key Features |
Applications |
- Polarized output
- Excellent power stability
- Excellent beam quality
- High power operation
- Compact package
- Fiber delivery
|
- Marking
- Material processing
- Micromachining
- Engraving
- Free space communications
- Imaging processing
|
1064 nm Nanosecond Fiber Laser Specifications
| Item |
Min |
Typical |
Max |
Unit |
| Output power |
|
|
20 |
W |
| Output power stability |
|
|
3 |
% |
| Polarization extinction ratio |
10 |
|
|
dB |
| Wavelength |
1025 |
1064 |
1100 |
nm |
| Pulse width |
5 |
|
200 |
ns |
| Repetition rate |
10 |
|
1000 |
kHz |
| Beam quality (M2) |
|
|
1.2 |
|
| Operating temperature |
20 |
|
30 |
oC |
| Size |
340x130x430 (instrument) |
mm |
1550 nm Nanosecond Fiber Laser Specifications
| Item |
Min |
Typical |
Max |
Unit |
| Output power |
|
|
5 |
W |
| Output power stability |
|
|
3 |
% |
| Polarization extinction ratio |
10 |
|
|
dB |
| Wavelength |
|
1550 |
|
nm |
| Pulse width |
5 |
|
200 |
ns |
| Repetition rate |
10 |
|
1000 |
kHz |
| Beam quality (M2) |
|
|
1.2 |
|
| Operating temperature |
20 |
|
30 |
oC |
| Size |
340x130x430 (instrument) |
mm |
PolarOnyx, Inc. reserves the right to change specs at any time without notice.
