Mars – High Power Fiber Laser and Amplifier

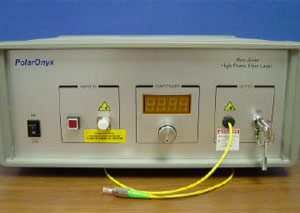

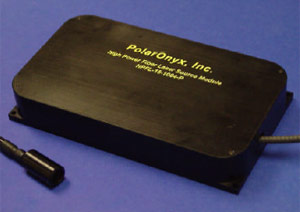

Mars series represent PolarOnyx's high power CW fiber laser products at 1550 and 2000 nm (up to 10 W) and 1 um (up to 20 W) wavelength range. Various power levels are available from 1 W to 20 W. Build-in electronics provides interface (RS232 and customer defined) with computer for ease of automation and system integration. OEM versions provide superior interfaces for system integration and instrument versions offer a turn-key solution for R&D. Customized designs are also available.


Key Features Applications
  • Polarized output
  • Excellent power stability
  • Excellent beam quality
  • High power operation
  • Compact package
  • Fiber delivery
  • Marking
  • Material processing
  • Micromachining
  • Engraving
  • Free space communications
  • Imaging processing

High Power CW Fiber Amplifier/Laser Specifications


Item Min Typical Max Unit
Output power 1   20 W
Noise figure (amplifier) 4.5   7.5 dB
Stability     3 %
Wavelength   1030, 1064, 1550, 2000   nm
Gain flatness w/o GEF     1 dB
Return loss   35   dB
Operating temperature 0   40 oC
Pump   980/915   nm
Power consumption 10   150 W
Electronic interface 120/220 AC V
Size 230x130x37 (module)
348x129x340 (instrument)		 mm

PolarOnyx, Inc. reserves the right to change specs at any time without notice.
