PolarOnyx introduces high power ultra-short pulsed fiber laser modules/instruments with up to 200 mW average power and < 100 fs pulse width at 1530-1600 nm, and 200mW average power and < 200 fs width at 1025-1080 nm and 1950-2050 nm. These modules/instruments provide fiber outputs and a turn key solution as well as an embedded electronics with a computer interface.

• Download Data Sheet

Key Features	Applications
< 100 fs pulse Up to 200 mW average power Low cost Fiber delivery	Instrumentation and measurement Ultrafast phenomena research Biomedical research and development Precision spectroscopy

1 micron, 1.55 micron and 2.0 micron Seed Mode-Locked Femtosecond Fiber Laser Specifications

Item	Min	Typical	Max	Unit
Output average power			200	mW
Pulse width	50	100	200	fs
Wavelength range	1530 1025 1950	Fixed Fixed Fixed	1600 1080 2050	nm nm nm
Pulse repetition rate	10		200	MHz
Connector type		FC/APC 200x160x45 (module)
Size	348x129x340 (instrument)			mm

Note: Wavelength tuning is also available upon request.

---

PolarOnyx, Inc. reserves the right to change specs at any time without notice.

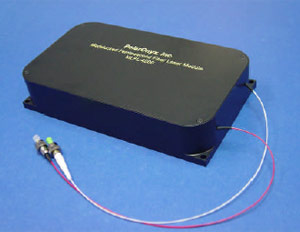

Mode-locked femtosecond fiber laser module and autocorrelator trace
