Key Features	Applications
Broad wavelength tuning rang (C, L) Excellent power and wavelength stability 1 micron wavelength band Small form factor	Test and measurement Fiber sensor systems Monitor DWDM thin film coating

1550 nm Tunable Fiber Laser Specifications

Item	Min	Typical	Max	Unit
Output power	1		10	dBm
Wavelength range (1 micron)	1025	1030 or 1064	1090	nm

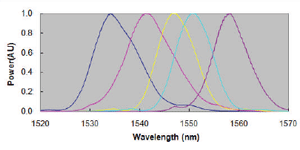

Wavelength range	1530	C or L band	1610	nm
Return loss		30		dB
Operating temperature	0		40	oC
Tuning mechanism		mechanical
Power consumption			4	W
Size	235x240x100 (instrument)			mm

Note: Electrically tuning is available upon request.

---

PolarOnyx, Inc. reserves the right to change specs at any time without notice.

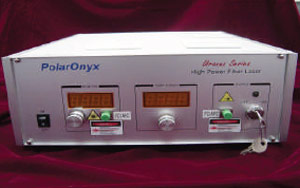

Broad wavelength tunable fiber laser module and instrument
