Pluto series represent PolarOnyx’s high power femtosecond/picosecond super-continuum fiber laser products. Based on our patent pending proprietary technology on pulse shaping, polarization shaping and spectral shaping, and expertise on specialty fiber optics, PolarOnyx has successfully developed high power femtosecond/picosecond super continuum fiber lasers pumped by fundamental fs/ps fiber laser 1030 nm and 1550 nm wavelength region. These include standard high power products with power levels up to 5 W. Both OEM modules and instruments are available. OEM versions provide superior interfaces for system integration and instrument versions offer a turn-key solution for R&D. Output with an acousto-optical tunable filter for tuning the fiber laser is available on customer request.

• Download Data Sheet

Key Features	Applications
High power and broad spectrum 450-2400 nm Embedded electronics & computer interface Turn key and maintenance free Self starting and highly stable operation	OCT Biomedical research and development Instrumentation and measurement Ultrafast phenomena research Spectroscopy and microscopy

1 micron pumped Super Continuum Fiber Laser Specifications

Item	Min	Typical	Max	Unit
Output average power			5	W
Pulse width			10	ps
Wavelength range	450		2400	nm
Pulse repetition rate	1		200	MHz
Timing jitter		<1		ps
Stability		<3		%
Operating temperature	20		30	oC
Power consumption			50	W
Output type		Free space
Size	430x129x340 (instrument)			mm

Note: Two-arm output is available.

1550 nm pumped Super Continuum Fiber Laser Specifications

Item	Min	Typical	Max	Unit
Output average power			1000	mW
Pulse width	0.04		10	ps
Wavelength range	1050		2100	nm
Pulse repetition rate	10		300	MHz
Timing jitter		<1		ps
Operating temperature	20		30	oC
Power consumption			50	W
Output type		Free space
Size	348x129x340 (instrument)			mm

Note: Two-arm output is available.

---

PolarOnyx, Inc. reserves the right to change specs at any time without notice.

Figures 1-2: Super continuum spectrum generated by 1570 nm (top) and 1030 nm (bottom) high power fiber laser

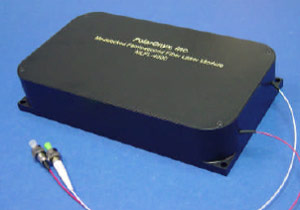

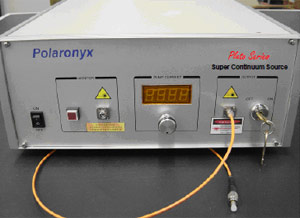

Figures 3-4: Module and instrument of super continuum fiber laser
