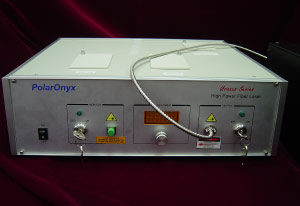

Based on our patent pending proprietary technology on pulse shaping, polarization shaping and spectral shaping, and expertise on specialty fiber optics, PolarOnyx has successfully developed high energy ultra-short pulsed fiber lasers operating at 1 micron, 1.55 micron and 2.0 micron wavelength region. This module provides a turn key solution as well as an embedded electronics with a computer interface.

• Download Data Sheet

Key Features	Applications
500 fs pulse High Energy up to 100 micro-J Turn key/RS 232 Competitive price	Material processing Ultrafast phenomena research Biomedical research and development Photo-detector characterization

1 micron High Energy fs Fiber Laser Specifications

Item	Min	Typical	Max	Unit
Output pulse energy		1, 10, 50	100	Micro-J
Pulse width			800	fs
Wavelength range		1030	1065	nm
Pulse repetition rate	0.01		5	MHz
Output type		Free space
Size	430x130x560			mm

Note: Integrated SHG (515 nm/532 nm) is available.

1.55 and 2.0 micron High Energy fs Fiber Laser Specifications

Item	Min	Typical	Max	Unit
Output pulse energy		1,5	10	Micro-J
Pulse width			800	fs
Wavelength range	1530 1950	1550 2000	1600 2050	nm nm
Pulse repetition rate	0.01		5	MHz
Output type		Free space or fiber output
Size	430x130x560			mm

---

PolarOnyx, Inc. reserves the right to change specs at any time without notice.
